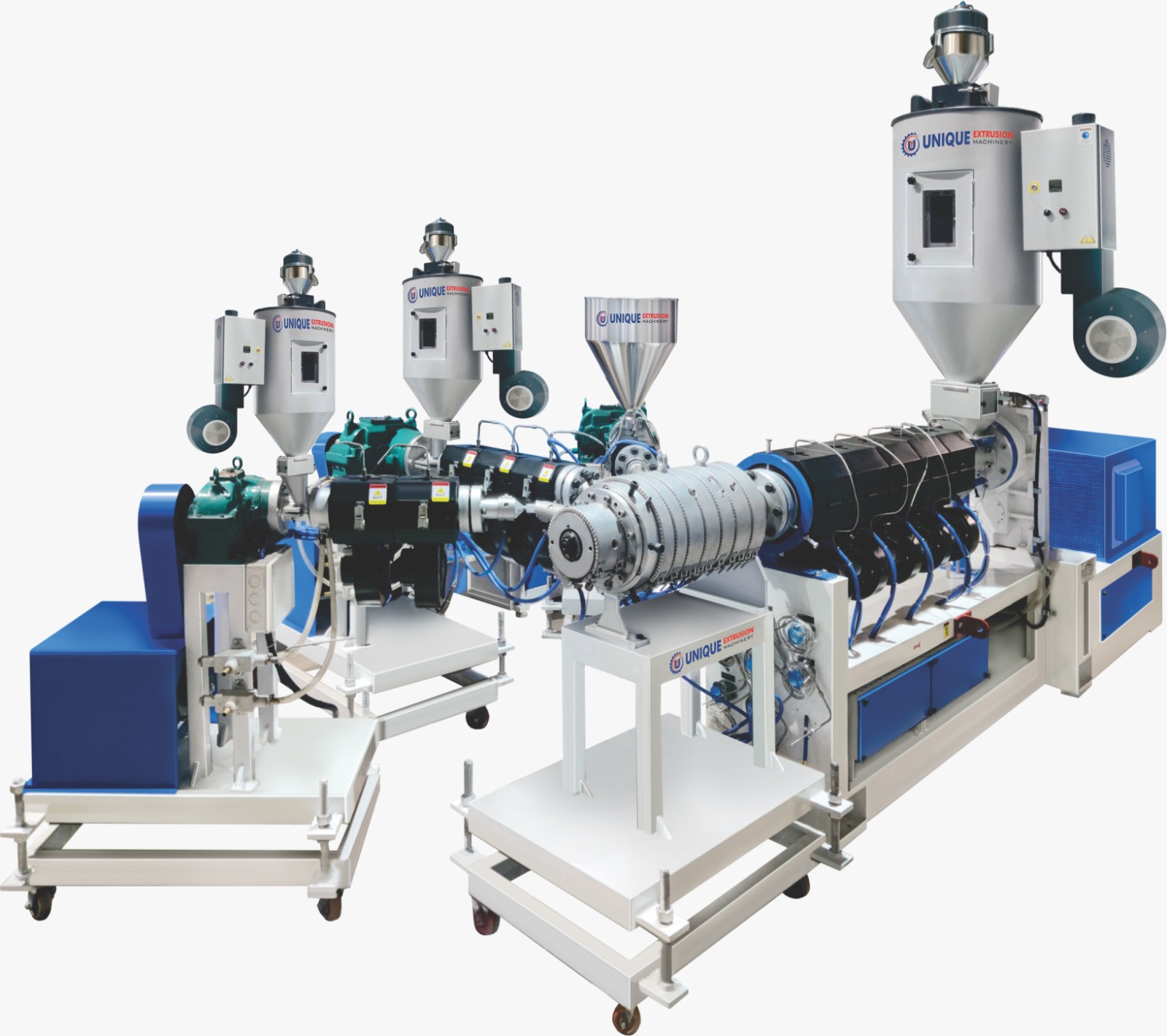

SINGLE SCREW EXTRUDER / HIGH SPEED SERIES (HDPE / PPR / MDPE)
UNIQUE EXTRUSION ADVANTAGES
- High Output rates.
- High Speed Models for Reduced Power Consumption.
- Wider range of Processing applications due to longer LD ratio.
- Superior physical properties of end product.
- High Power Savings Systems with New Generation Machinery.
- PLC Controls on Request.
- 10% to 15% Heating Power Saving Systems In PLC Bese Controll.
- High Alert System for Heating Tripping and Motors Tripping.
BARRIER SCREW
- It allaws high homogenous plasticizing less material-slippage and higher output.
- Grooved feed System.
- Higher productivity compared to conventional design.
- Improved material conveying capacity.
- Uniform throughout and melt temperature.
SAFETY FEATURES
- Cold by pass for screw barrel safety.
- Zero start system.
- Easy plug & play systems.
- All standard controllers.
| Model | UES 25 | UES 40 | UES 50 | UES 65 | UES 75 | UES 90 | UES 120 |
|---|---|---|---|---|---|---|---|
| EXTRUDER DRIVE (KW) | 3.7 | 7.5 | 15 | 30 | 37.5 | 60 | 110 |
| SCREW DIA (mm) | 25 | 40 | 50 | 65 | 75 | 90 | 120 |
| L.D Ratio | 24:1 | 26:1 | 26:1 | 26:1 | 26:1 | 26:1 | 26:1 |
| Output (Kg/Hour) | 45 | 18-20 | 36-40 | 90-100 | 120-130 | 170-190 | 300-320 |
| MODEL | HIGH SPEED 45-45 | HIGH SPEED 45-55 | HIGH SPEED 45-75 | HIGH SPEED 45-90 | HIGH SPEED 60-110 | HIGH SPEED 60-132 | HIGH SPEED 75-200 | HIGH SPEED 75-250 |
|---|---|---|---|---|---|---|---|---|
| Screw Diameter (mm) | 45 | 45 | 45 | 45 | 60 | 60 | 75 | 75 |
| L.D Ratio | 37:1 | 37:1 | 37:1 | 37:1 | 37:1 | 37:1 | 37:1 | 37:1 |
| Main Motor (KW) | 45 | 55 | 75 | 90 | 110 | 132 | 200 | 250 |
| Output (KG/Hour) | 140-160 kg/hr | 180-190 kg/hr | 220-240 kg/hr | 300-330 kg/hr | 380-400 kg/hr | 500-550 kg/hr | 650-700 kg/hr | 800-850 kg/hr |
| Pipe Range (mm) | 20 - 110mm | 20 - 110mm | 20 - 200mm | 63 - 315mm | 63 - 315mm | 63 - 400mm | 110 - 400mm | 110 - 630mm |
