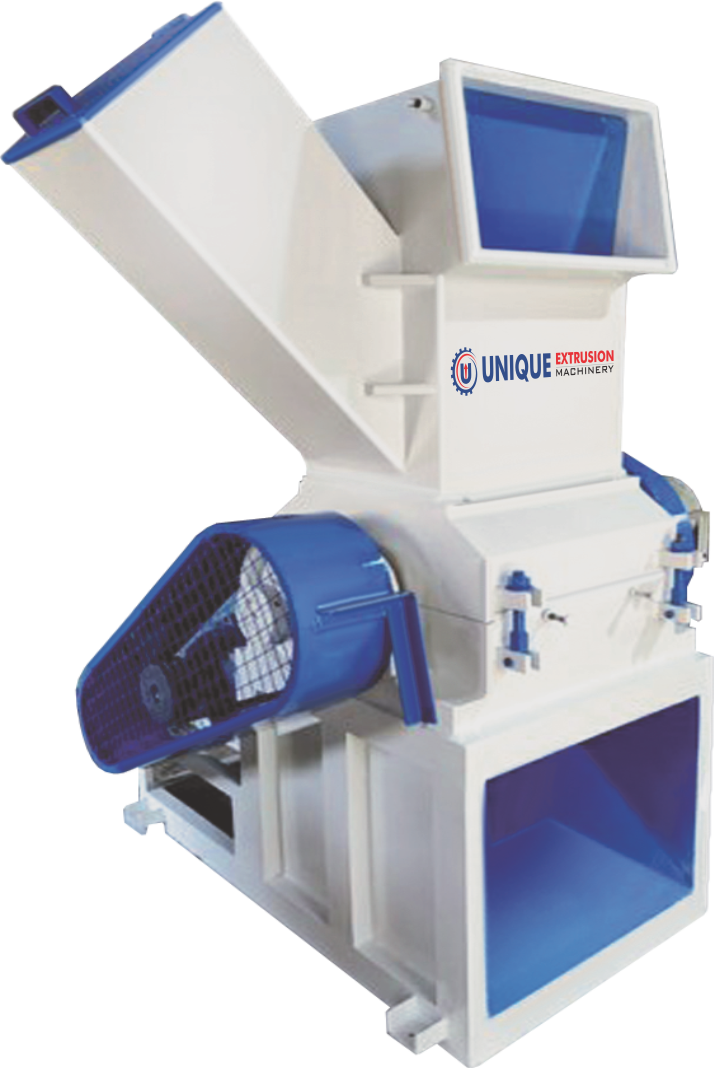

PVC / HDPE GRAINDER UNIT
PVC / HDPE GRINDER UNIT
- BODY FRAMS MATERIAL MILD STEEL WITH 4 MM TO 6 MM THICKNESS.
- MOTOR SYSTEM WITH STARTER OPRATING.
- BLADE MATERIAL EN9 OR EN41 WITH HARDENING AND HARD CHROME PLATING.
- GRINDER DESIGN WITH 9 BLADE SYSTEM STORAGE BOX FFOR MATERIAL STORAGE.
| MODEL | UEM 60 | UEM 80 | UEM 100 | UEM 120 |
|---|---|---|---|---|
| DISC DIAMETER | 300 | 300 | 300 | 400 |
| DRIVE KW | 11.5 | 15 | 22.5 | 30 |
| THROUGHPUT IN KG/HR | 60 | 80-90 | 100-120 | 140-160 |
Table
| MODEL | UEM 60 | UEM 80 | UEM 100 | UEM 120 |
|---|---|---|---|---|
| DISC DIAMETER | 300 | 300 | 300 | 400 |
| DRIVE KW | 11.5 | 15 | 22.5 | 30 |
| THROUGHPUT IN KG/HR | 60 | 80-90 | 100-120 | 140-160 |
